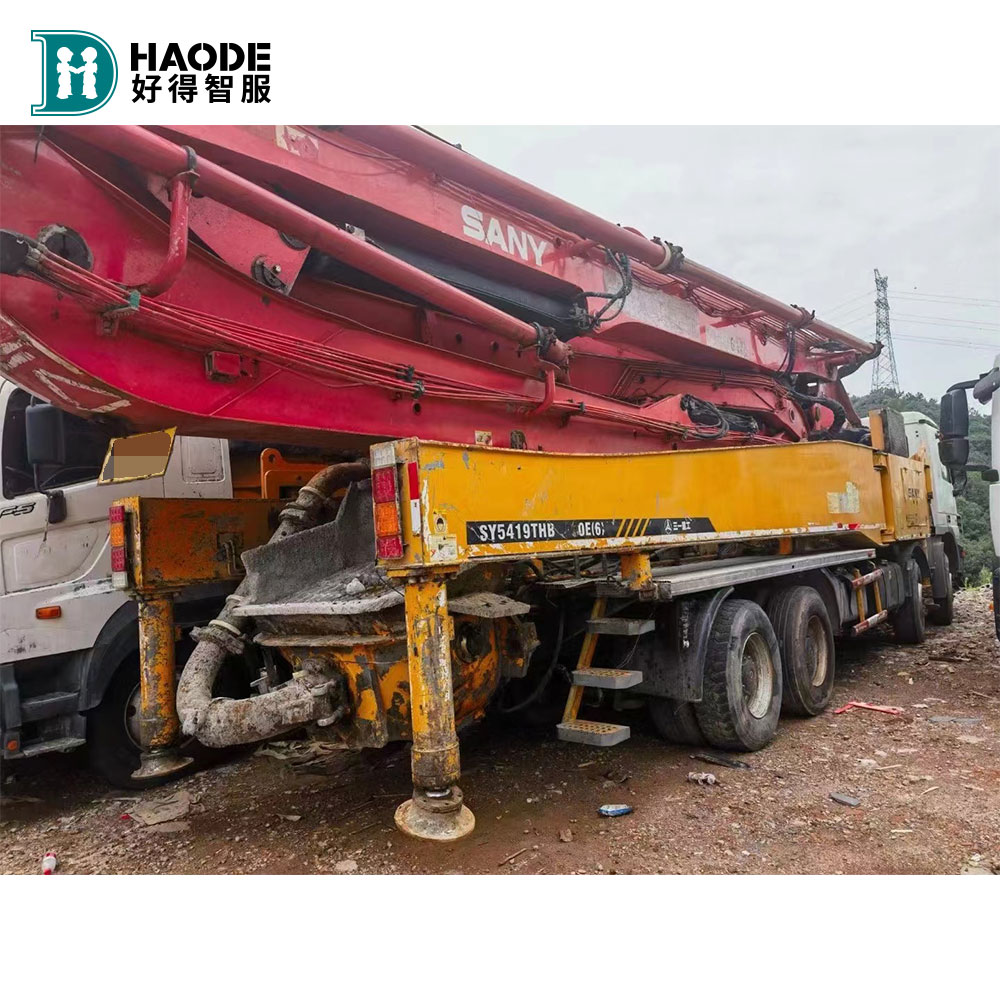

Model Number : | sany5419 |
Supply Ability : | 10000 Piece/Pieces per Month |
Price : | $49,000.00/sets 1-2 sets |
Vehicle parameters | Length | 13850mm |
Overall width | 2500mm | |
Overall height | 4000mm | |
dead weight | 41760kg | |
Boom leg parameters | Vertical height of the boom | 56.0m |
Horizontal length of the boom | 51.0m | |
Vertical depth of the boom | 36.6m | |
Minimum unfolded height | 15.2m | |
First arm length | 11400mm | |
corner | 90° | |
Second section arm length | 9230mm | |
corner | 180° | |
Third section arm length | 8750mm | |
corner | 180° | |
Fourth section arm length | 11060mm | |
corner | 240° | |
Section 5 arm length | 11560mm | |
corner | 220° | |
Turntable rotation angle | ±360° | |
Front leg spread width | 9300mm | |
Rear leg spread width | 11670mm | |

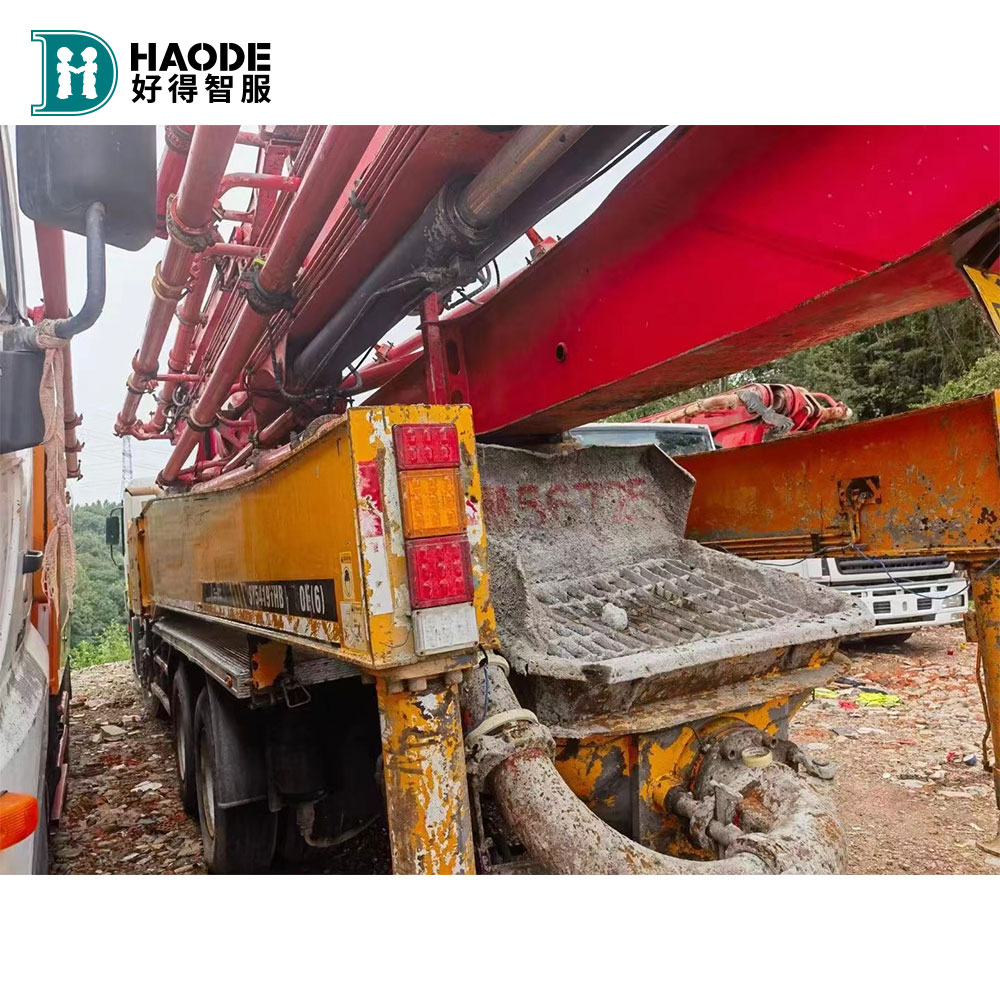

Pumping system parameters | Concrete theoretical displacement Low pressure | 170 m3/h |
high pressure | 120 m3/h | |
Theoretical pumping pressure Low pressure | 8.3 MPa | |
high pressure | 12MPa | |
Theoretical pumping times Low pressure | 24.5 times/minute | |
high pressure | 17 times/min | |
Conveying cylinder inner diameter | 260mm | |
Conveying cylinder stroke | 2200mm | |
Hydraulic system | Open | |
System oil pressure | 32MPa | |
Fuel tank volume | 700L | |
Water tank volume | 600 L | |
Conveying pipe diameter | 125mm | |
End hose length | 3m | |
End hose diameter | 125mm | |

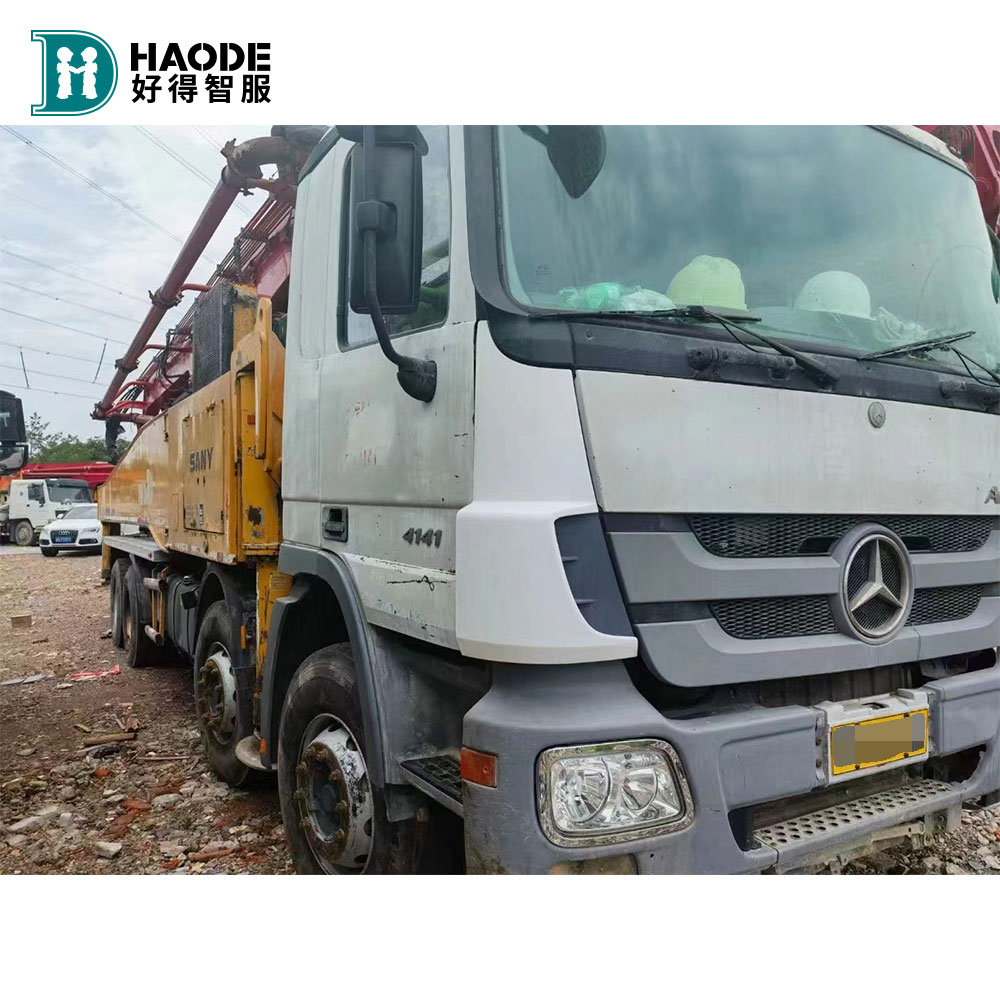

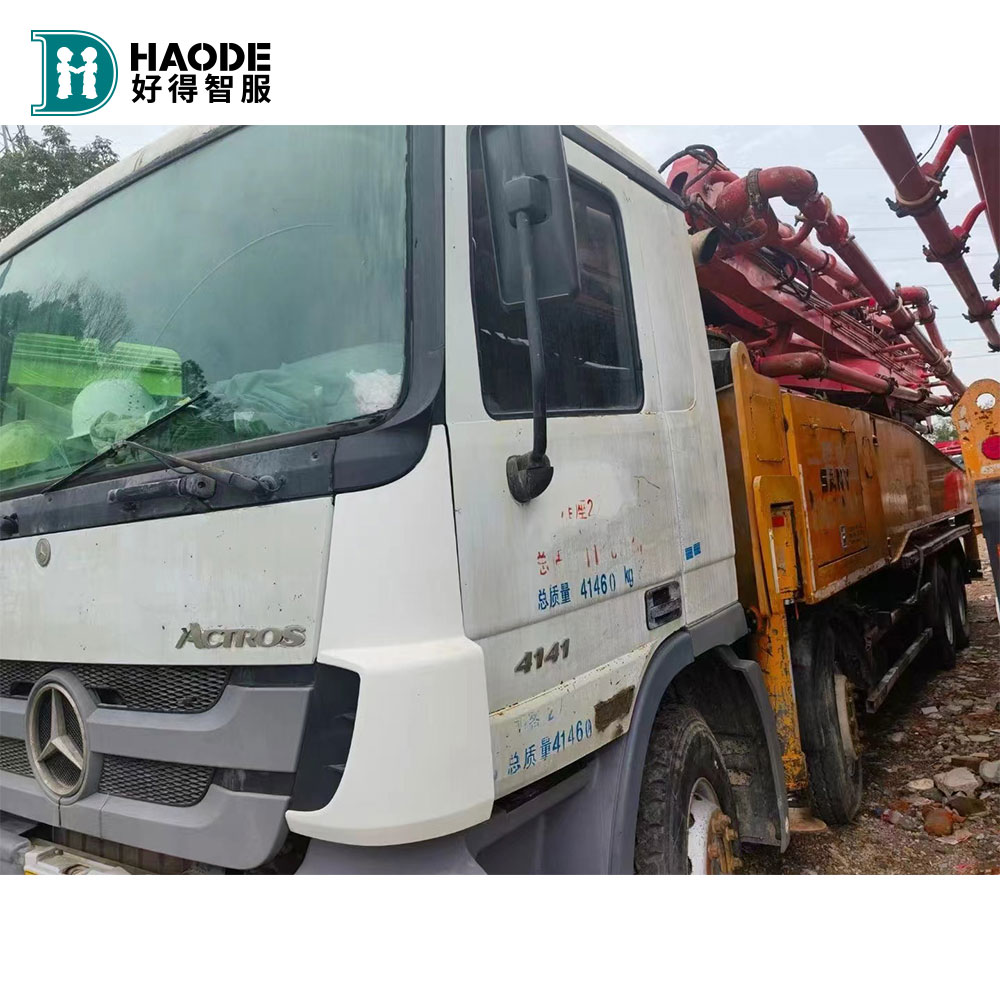

Chassis parameters | Chassis model | BENZ Actros 4141 |

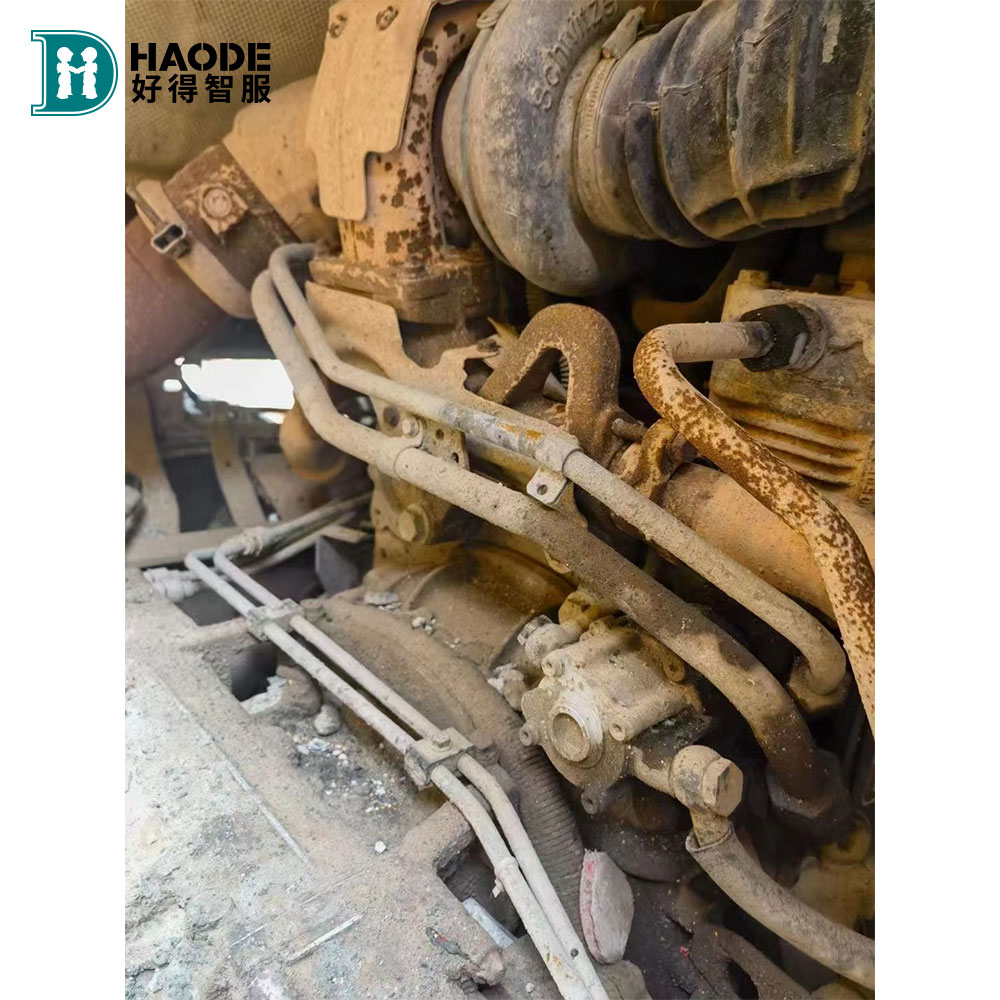

Engine model | OM501LA.Ⅲ/17 | |
Engine power | 300kW/1800rpm | |
Emission standards | Euro III. | |
Fuel tank volume | 400 L | |
Displacement | 11.946 L | |
Maximum speed | 80km/h | |
Braking distance | ≤10m/30kph |
![]() |
