| Brand Name : | Shantui |

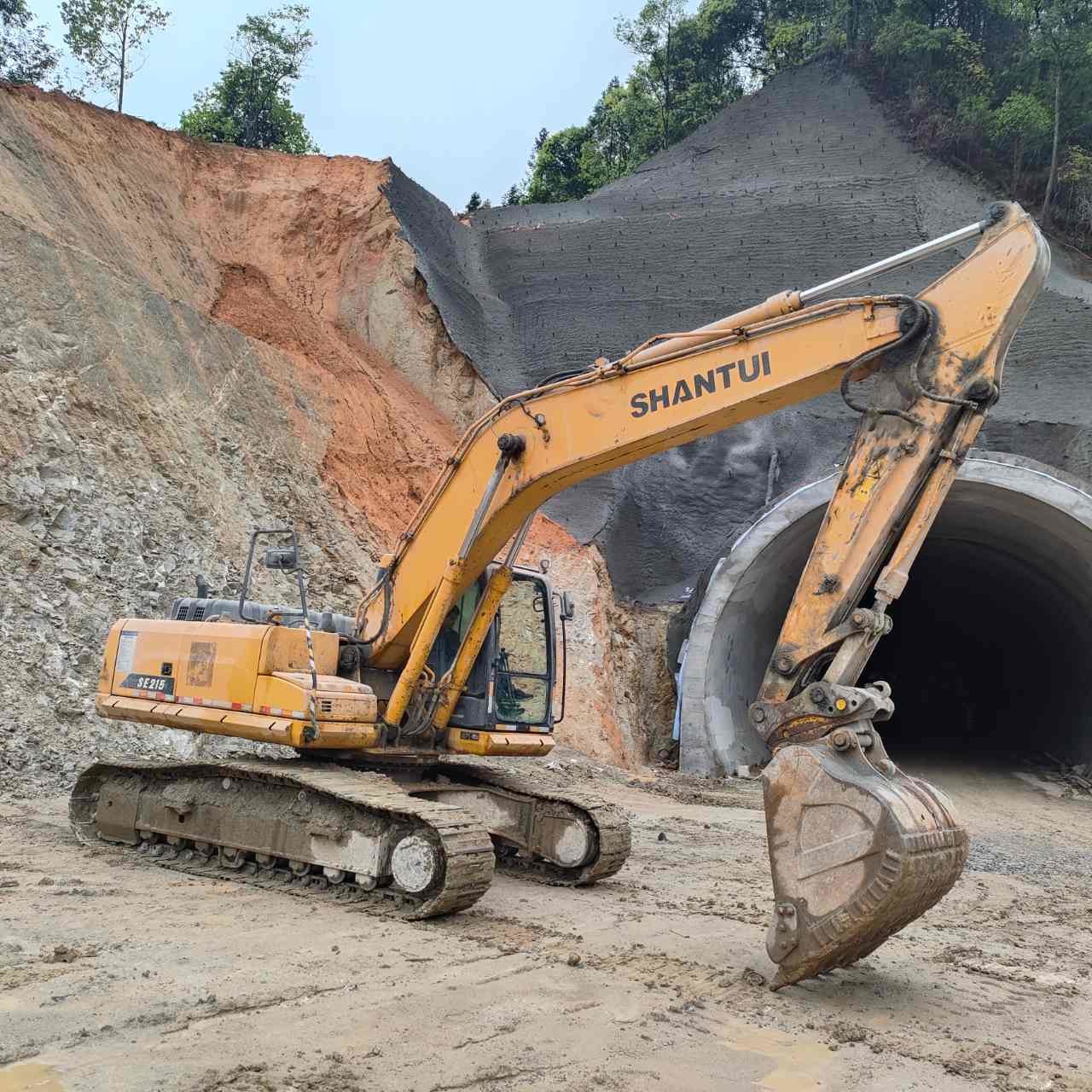

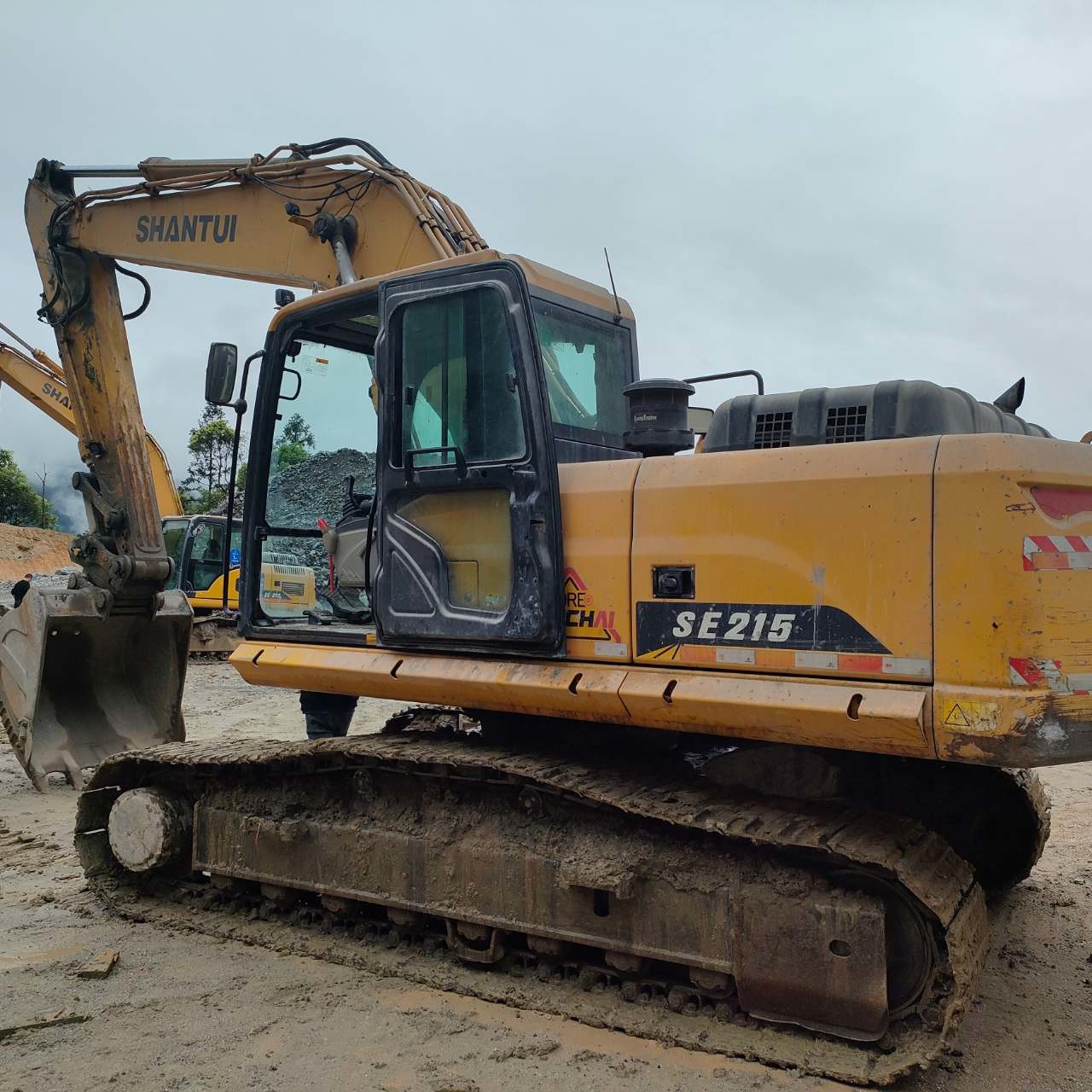

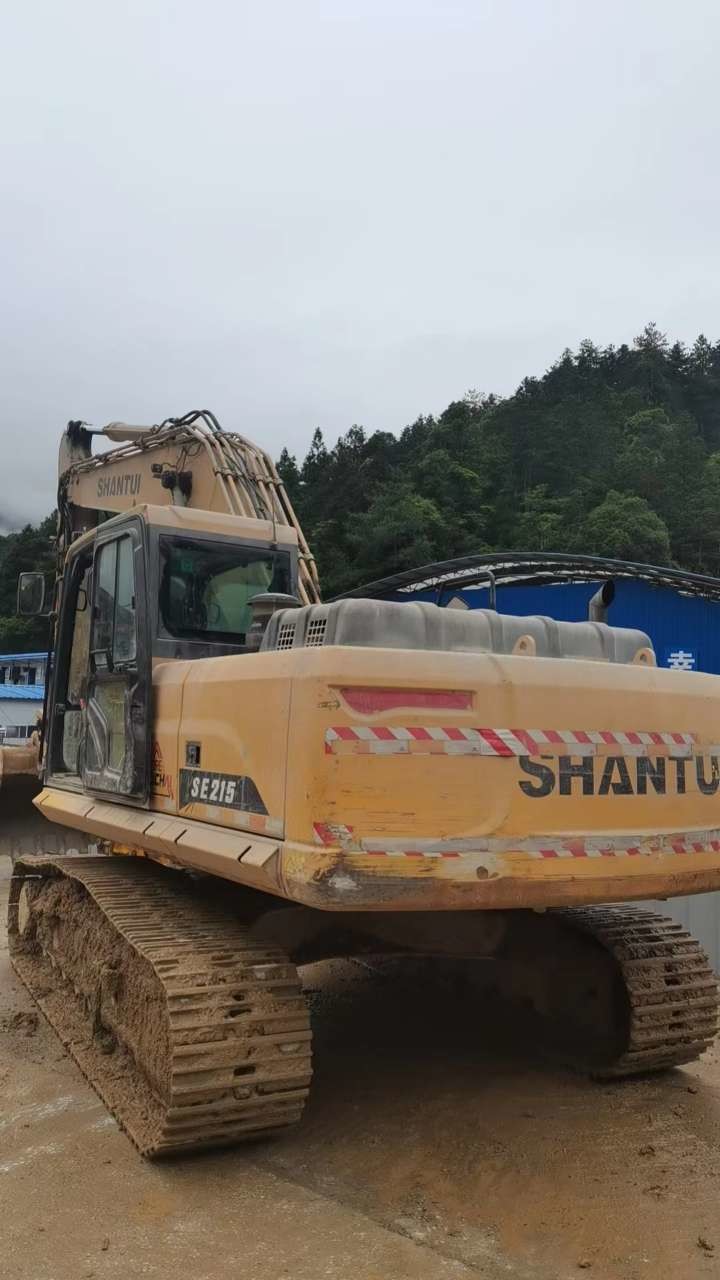

| Model Number : | SE215 |
| Certification : | SGS |
| Price : | $45000-$50000 |
| Payment Terms : | L/C, D/A, D/P |
| Supply Ability : | negotiable |
| Delivery Time : | 8 work days |
| Model | SE135 (Standard version) | SE135W(Weichai engine version) | SE150 (Standard version) | SE215 (Standard version) |
| Overall dimensions | ||||
| Overall length (mm) | 7860 | 7860 | 7860 | 9625 |
| Ground length (During transport) (mm) | 4320 | 4320 | 4390 | 4915 |
| Overall height (To the top of boom) (mm) | 2800 | 2800 | 2860 | 3075 |
| Overall width (mm) | 2500 | 2500 | 2645 | 2800 |
| Overall height (To top of cab) (mm) | 2855 | 2855 | 2855 | 3055 |
| Ground clearance of counterweight (mm) | 915 | 915 | 915 | 1075 |
| Minimum ground clearance (mm) | 425 | 425 | 425 | 470 |
| Tail turning radius (mm) | 2380 | 2380 | 2380 | 2925 |
| Track length (mm) | 3645 | 3645 | 3645 | 4140 |
| Track gauge (mm) | 2000 | 2000 | 2000 | 2200 |
| Track width (mm) | 2500 | 2500 | 2500 | 2800 |
| Standard track shoe width (mm) | 500 | 500 | 500 | 600 |
| Turntable width (mm) | 2490 | 2490 | 2645 | 2725 |
| Distance from slewing center to tail (mm) | 2375 | 2375 | 2375 | 2920 |
| Working range | ||||
| Maximum digging height (mm) | 8495 | 8495 | 8670 | 10095 |
| Maximum dumping height (mm) | 6060 | 6060 | 6210 | 7190 |
| Maximum digging depth (mm) | 5490 | 5490 | 5490 | 6490 |
| Maximum vertical digging depth (mm) | 4625 | 4625 | 4625 | 5915 |
| Maximum digging distance (mm) | 8300 | 8300 | 8325 | 9860 |
| Maximum digging distance at ground level (mm) | 8175 | 8175 | 8195 | 9675 |
| Working device minimum turning radius (mm) | 2445 | 2445 | 2395 | 2970 |
| Maximum lifting height of bulldozer blade (mm) | - | - | - | - |
| Maximum digging depth of bulldozer blade (mm) | - | - | - | - |
| Engine | ||||
| Model | QSF3.8T(China III) | WP4.1(China III) | QSF3.8T (China-III) | QSB7 (China-III) |
| Type | 4-cylinder inline and water-cooled and turbocharged | Inline 4-cylinder, high pressure common rail, and water-cooled and turbocharged | 4-cylinder, high pressure common rail, and water-cooled and turbocharged | 6-cylinder, high pressure common rail, and water-cooled and turbocharged |
| Displacement (L) | 3.76 | 3.76 | 3.76 | 6.7 |
| Rated power (kW/rpm) | 86/2200 | 92/2200 | 86/2200 | 124/2050 |
| Hydraulic system | ||||
| Type of hydraulic pump | Variable displacement duplex plunger pump | Variable displacement duplex plunger pump | Variable displacement duplex plunger pump | Variable displacement duplex plunger pump |
| Rated working flow (L/min) | 2x130 | 2x130 | 2x130 | 2x213 |
| Bucket | ||||
| Bucket capacity (m³) | 0.4~0.65(0.55) | 0.4~0.65(0.55) | 0.65 | 0.9 |
| Swing system | ||||
| Maximum swing speed (r/min) | 11.3 | 11.3 | 11.3 | 11 |
| Brake type | Mechanically applied and pressure released | Mechanically applied and pressure released | Mechanically applied and pressure released | Mechanically applied and pressure released |
| Digging force | ||||
| Bucket arm digging force (KN) | 70 | 70 | 70 | 135/146 |
| Bucket digging force (KN) | 97 | 97 | 97 | 99/107 |
| Operating weight and ground pressure | ||||
| Operating weight (kg) | 13500 | 13500 | 14500 | 20800 |
| Ground pressure (kPa) | 41.5 | 41.5 | 43.8 | 47.5 |
| Traveling system | ||||
| Traveling motor | Axial variable displacement plunger motor | Axial variable displacement plunger motor | Axial variable displacement plunger motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 3.25/5.2 | 3.25/5.3 | 3.25/5.2 | 3.15/5.15 |
| Traction force (KN) | 118 | 118 | 118 | 214 |
| Gradeability | 70%(35°) | 70%(35°) | 70%(35°) | 70%(35°) |
| Tank capacity | ||||
| Fuel tank capacity (L) | 220 | 245 | 220 | 330 |
| Cooling system (L) | 20 | 20 | 20 | 28 |
| Engine oil capacity (L) | 12 | 12 | 12 | 22 |
| Hydraulic oil tank/system capacity (L) | 177/205L | 177/205L | 177/205 | 270/400 |
|
|
