    20ton Caterpillar323 Excavatorconstruction Hydraulic System Machinery Hydraulic Clamshell Bucket Attachment Accessories

    Ask Lasest Price
    Brand Name : Caterpillar
    Model Number : 323
    Certification : SGS
    Price : $23000.00
    Payment Terms : L/C, D/A, D/P
    Supply Ability : negotiable
    Delivery Time : 8 work days
    • Product Details
    • Company Profile

    20ton Caterpillar323 Excavatorconstruction Hydraulic System Machinery Hydraulic Clamshell Bucket Attachment Accessories

    20ton Caterpillar323 Excavatorconstruction Hydraulic System Machinery Hydraulic Clamshell Bucket Attachment Accessories
    powerTraditional power
    vendordomestic
    bucketbackhoe
    Tonnage (ton)23
    Machine working weight (kg)21100
    Bucket capacity (m³)1
    Boom Length (mm)5700
    Bucket rod Length (mm)2500/2900
    performance
    Rotational speed (RPM)10.9
    Rotary torque (Nm)61.8
    Walking speed (km/h)5.4
    Climbing ability (%)70/35°
    Bucket digging force (kN)125
    Bucket rod digging force (kN)104
    Maximum traction (kN)205

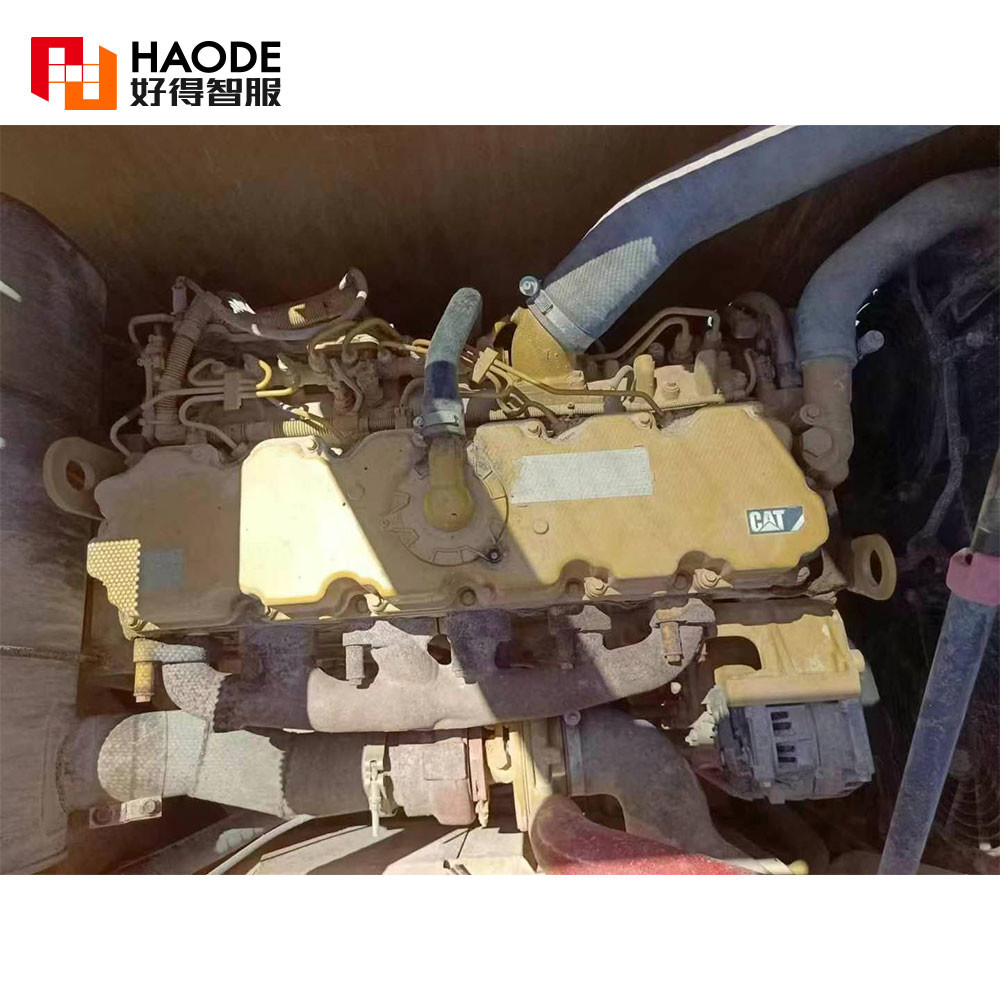

    Power system
    Engine typeCat C7.1
    Rated power (kw/ RPM)112/1800
    Displacement (L)7.01
    Number of cylinders (PCS)6
    Cylinder diameter × stroke (mm)105×135
    Work formThe 2 emissions
    The hydraulic system
    Main pump type cardCAT Axial piston pump + pilot pump
    Maximum flow of main pump (L /min)404
    Pilot pump flow rate (L/min)32.4
    Pilot oil circuit (MPa)39
    Working hydraulic oil circuit (Mpa)34.3
    Walking hydraulic circuit (Mpa)35
    Rotary hydraulic circuit (Mpa)25
    Main overflow setting pressure (Mpa)35
    Boom cylinder - Number x Cylinder diameter x stroke (mm)120×1260
    Bucket rod cylinder - Number x Cylinder diameter x stroke (mm)140×1504
    Bucket cylinder - Number x Cylinder diameter x stroke (mm)120×1104
    Oil capacity
    The fuel tank (L)410
    Hydraulic tank (L)138
    Hydraulic system (L)260
    Engine oil change (L)22
    Cooling liquid (L)25
    Body size
    Total length of transport (mm)9460
    Total transport width (mm)2800
    Total transport height (mm)3030
    Full height of cab (mm)2950
    Loading width (mm)2800
    Track grounding length (mm)3270
    Total track length (mm)4080
    Width of track plate (mm)600/700/790
    Total track width (mm)2800
    Track gauge (mm)2200
    Minimum ground clearance (mm)450
    Counterweight ground clearance (mm)1020
    Radius of rotation of rear end (mm)2750
    Operating range
    Maximum excavation radius of stop face (mm)9890
    Maximum excavation depth (mm)6720
    Maximum excavation height (mm)9490
    Maximum unloading height (mm)6490
    Maximum vertical excavation depth (mm)5690
    Maximum effective digging depth (mm)6380
